@flexis/srcset

@flexis/srcset

NPM version Node version Dependencies status Build status Coverage status Dependabot badge Documentation badge

Highly customizable tool for generating responsive images.

Install

npm i -D @flexis/srcset
# or
yarn add -D @flexis/srcset

Usage

CLI

npx srcset [...sources] [...options]
# or
yarn exec -- srcset [...sources] [...options]
Option Description Default
sources Source image(s) glob patterns. required
‑‑help, -h Print this message.
‑‑verbose, -v Print additional info about progress.
‑‑match, -m Glob patern(s) or media query(ies) to match image(s) by name or size. all images
‑‑width, -w Output image(s) widths to resize, value less than or equal to 1 will be detected as multiplier. no resize
‑‑format, -f Output image(s) formats to convert. no convert
‑‑skipOptimization Do not optimize output images. false
‑‑noScalingUp Do not generate images with higher resolution than they's sources are. false
‑‑dest, -d Destination directory. required

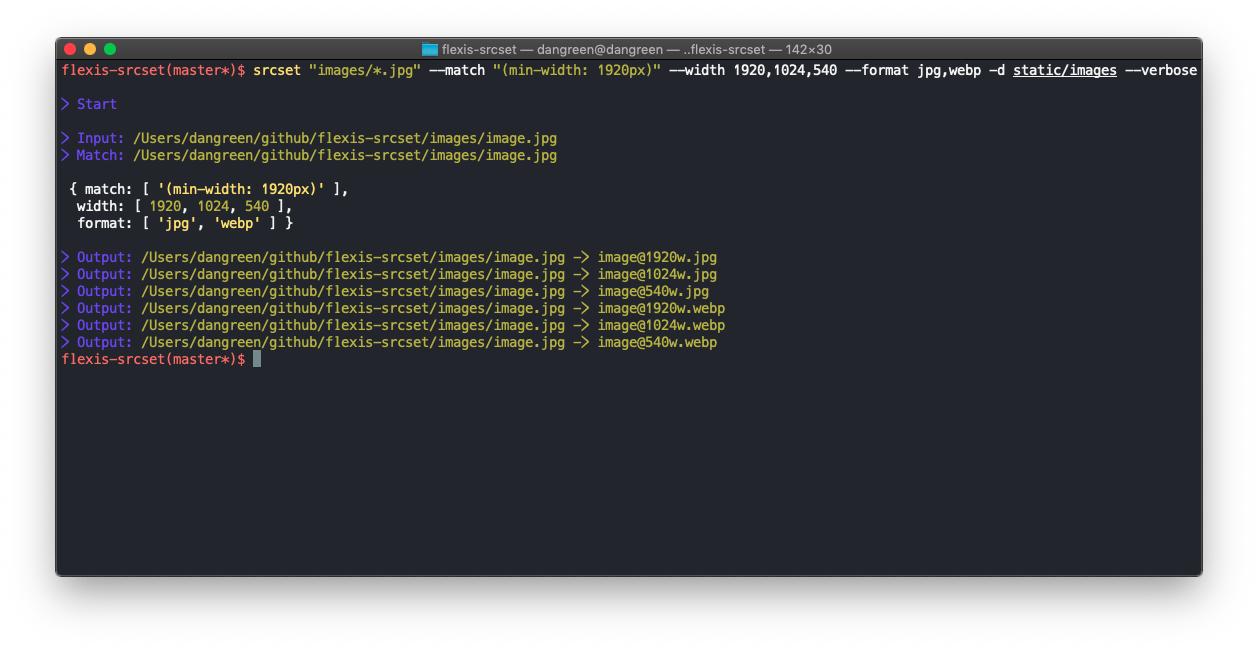

Example

srcset "src/images/*.jpg" --match "(min-width: 1920px)" --width 1920,1280,1024,860,540,320 --format jpg,webp -d static/images

Configuration

Common options

Option Type Description Default
processing Partial<IProcessingConfig> Object with Sharp configs for each supported format. see defaults.ts
optimization Partial<IOptimizationConfig> Object with imagemin plugins for each format. see defaults.ts
skipOptimization boolean Do not optimize output images. false
scalingUp boolean Generate images with higher resolution than they's sources are. true
postfix Postfix Postfix string or function to generate postfix for image. see defaults.ts

Constructor options

Extends common options.

Option Type Description Default
concurrency number Concurrency limit. os.cpus().length

Rule options

Extends common options.

Option Type Description Default
match Matcher There is support of 3 types of matchers:
1. Glob pattern of file path;
2. Media query to match image by size;
3. (path: string, size: ISize, source: Vinyl) => boolean function.
all images
format SupportedExtension | SupportedExtension[] Output image(s) formats to convert. no convert
width number | number[] Output image(s) widths to resize, value less than or equal to 1 will be detected as multiplier. [1]

Configuration file

Configuration file is optional. If needed, can be defined through .srcsetrc (JSON file) or .srcsetrc.js in the root directory of the project.

Supported options, extends common options:

Option Type Description Default
src string | string[] Source image(s) glob patterns. required
rules IRule[] Rules. []
verbose boolean Print additional info about progress. false
dest string Destination directory. required

Gulp

You can use @flexis/srcset with Gulp:

import srcSet from '@flexis/srcset/lib/stream';

gulp.task('images', () =>
    gulp.src('src/*.{jpg,png}')
        .pipe(srcSet([{
            match: '(min-width: 3000px)',
            width: [1920, 1280, 1024, 860, 540, 320],
            format: ['jpg', 'webp']
        }, {
            match: '(max-width: 3000px)',
            width: [1, .5],
            format: ['jpg', 'webp']
        }], {
            skipOptimization: true
        }))
        .pipe(gulp.dest('static'))
);

Plugin options:

First argument is IRule[], second argument extends common options:

Option Type Description Default
verbose boolean Print additional info about progress. false

JS API

Module exposes next API:

export default SrcSetGenerator;
export {
    IProcessingConfig,
    IOptimizationConfig,
    ISrcSetVinyl,
    ISize,
    IMatcherFunction,
    SupportedExtension,
    Matcher,
    IPostfixFormatter,
    Postfix,
    IConfig,
    IGenerateConfig,
    isSupportedType,
    extensions,
    attachMetadata,
    matchImage
}

Example

import {
    promises as fs
} from 'fs';
import SrcSetGenerator from '@flexis/favicons';
import Vinyl from 'vinyl';

async function generate() {
    const path = 'src/background.jpg';
    const contents = await fs.readFile(path);
    const source = new Vinyl({
        path,
        contents
    });
    const srcSet = new SrcSetGenerator();
    const images = srcSet.generate(source, {
        width: [1920, 1280, 1024, 860, 540, 320],
        format: ['jpg', 'webp']
    });

    for await (const image of images) {
        image.base = './static';
        await fs.writeFile(image.path, image.contents);
    }
}

generate();

Description of all methods you can find in Documentation.
